SpeedyBee FPV Drone Frame 5 Inch True X 225mm Carbon Fiber Quad Frame Kit for Freestyle Racing DJI -V2 Edition

Rated 0 out of 5
(be the first to review)

£96.29

SKU: B093ZWF493 Category:

Buy now

Brand SPEEDY BEE
Material Carbon Fibre
Age range (description) Kid
Control method Touch
Theme Sport

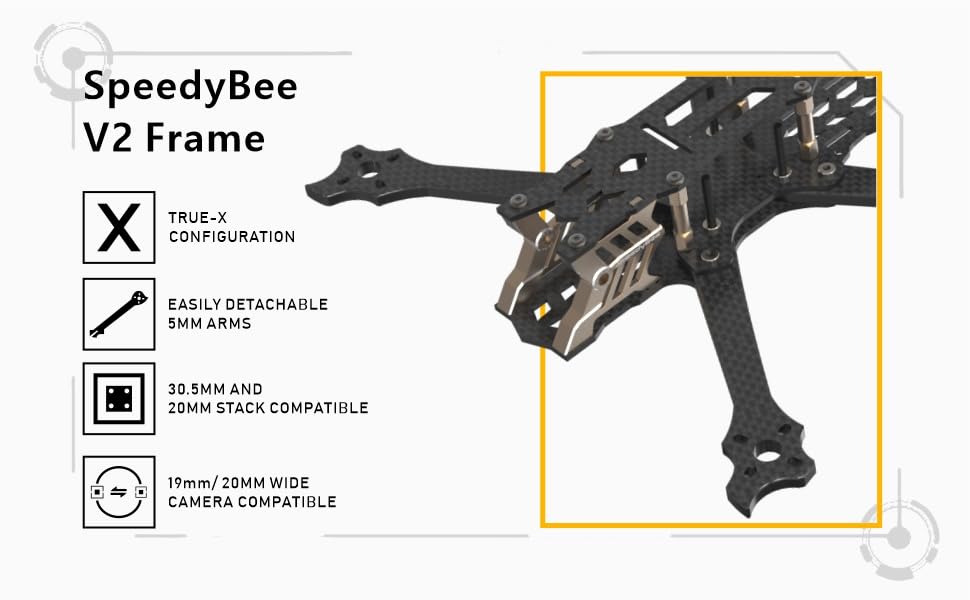

  • [Carbon Fiber Durable Frame] Made of High-quality Carbon Fiber, lightweight, but very strong. Designed for long-range fpv flight but also perfect for racing or freestyle.
  • [Both for analog camera and DJI Air Unit] The first mount designed by SpeedyBee compatible with 19mm/ 20mm wide camera, swap the left and right to support 19mm/20mm wide camera accordingly.
  • [For all flight controllers] 20mm /30.5mm mounting hole pitch supports the FC stack installation with 20mm hole pitch/30.5mm pitch, even up to three-layer.
  • [Suitable for various FPV VTX Installation] This frame provides various installation methods for various specifications of FPV VTX for your builds.
  • [Easy to assemble] Replaceable arm for easy maintenance, suitable for both beginners and senior players.

Reviews

There are no reviews yet.

Leave a customer review

Your email address will not be published. Required fields are marked *


Product Description

SB-FRAMEV2

Support 19mm/20mn Wide Camera Installation

The first mount designed by SpeedyBee compatible with a 19mm/ 20mm wide camera at the same time, swap the left and right to support a 19mm / 20mm wide camera accordingly.

SB-FRAMEV2

SB-FRAMEV2

SB-FRAMEV2

20mm/30.5mm mounting hole pitch

Support the stack installation with 20mm hole pitch/30.5mm pitch, up to three-layer

Suitable for your VTX installation, which is a standard frame

The frame provides installation methods for various specifications of VTX.

Replaceable arm for easy maintenance

PV freestyle carbon fiber frame RC racing drone

SB-FRAMEV2

Specifications

  • Model: SpeedyBee FS225 V2
  • Wheelbase: 225mm
  • Weight: 119g
  • Frame height: 36mm
  • Camera fixed width: 19mm/20mm
  • Material: Carbon Fiber
  • Top plate thickness:2mm
  • Heap bottom plate thickness:2mm
  • Tail bottom plate thickness: 2mm
  • Arm thickness: 5mm
  • Flight Control fixed Size:30.5*30.5/20*20mm
  • Transmitter fixed size:30.5*30.5/20*20mm(20*20/Sliding Mounting)
  • DJI Transmitter:Extra TPU Printer Needed
